Hinge and pin

Episode #69

Byldupee

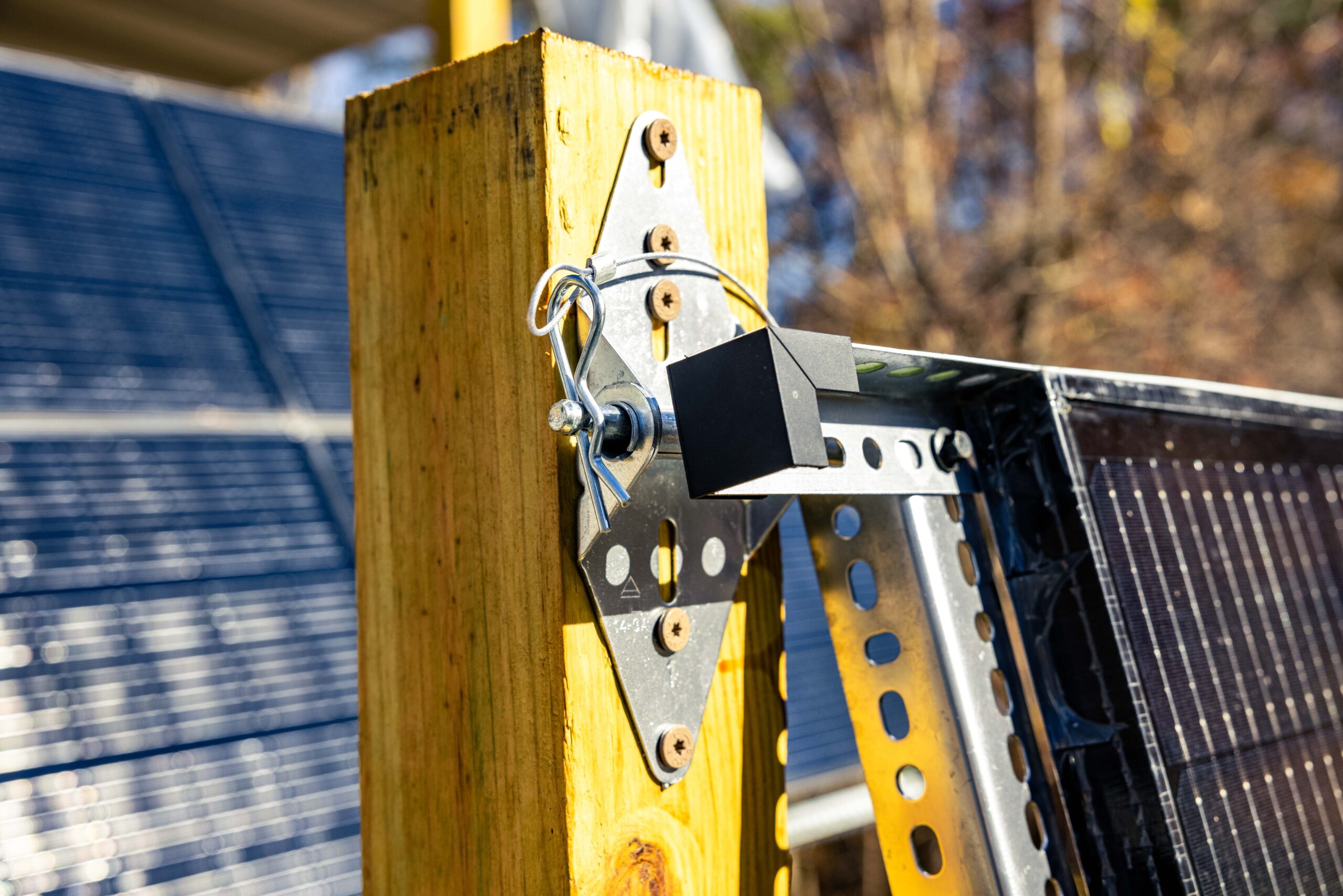

The design is simple: use a garage hinge to hold it to the post. A clevis pin to hold the panel to the hinge.

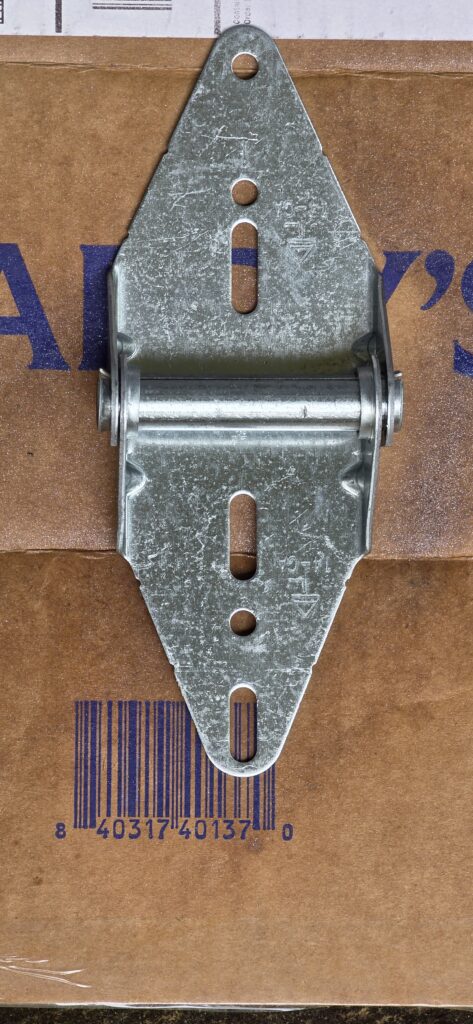

Hinge

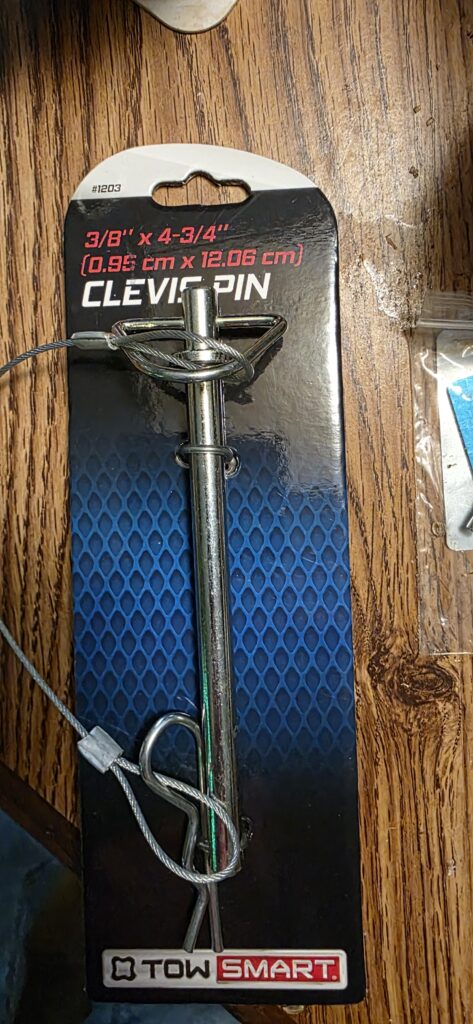

Pin
Hinge and pin

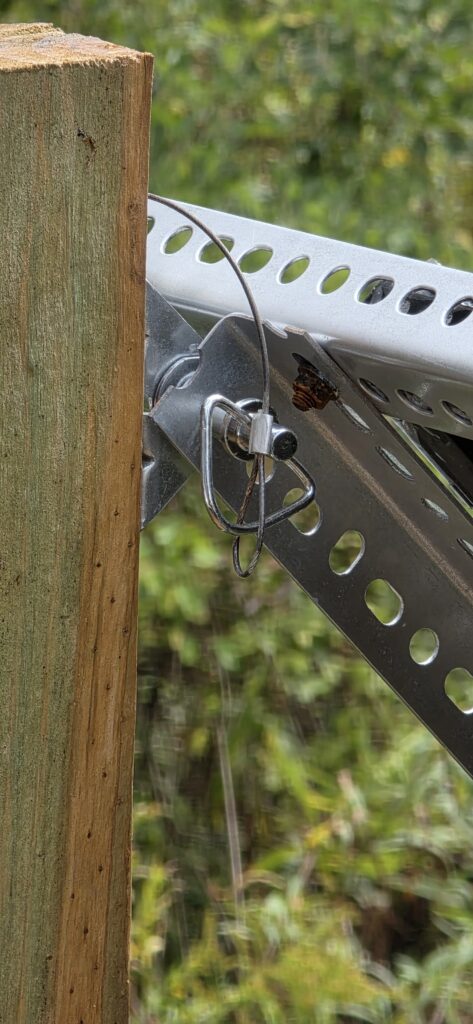

Assembled
Other side
